Filter plates play a crucial role in many industrial filtration processes, helping separate solids from liquids in applications ranging from food production to chemical manufacturing. These plates form the core of filtration equipment such as filter presses and are available in various styles, each designed to handle different types of materials and filtration conditions. Understanding the different types of filter plates and their specific uses is essential for selecting the right one for your filtration needs.
Filter plates are available in several designs, each optimized for particular processes. The primary factors to consider when choosing a filter plate include the nature of the material being filtered, the required flow rate, and the operating conditions. Below, we’ll explore the most common filter plate styles and their applications.

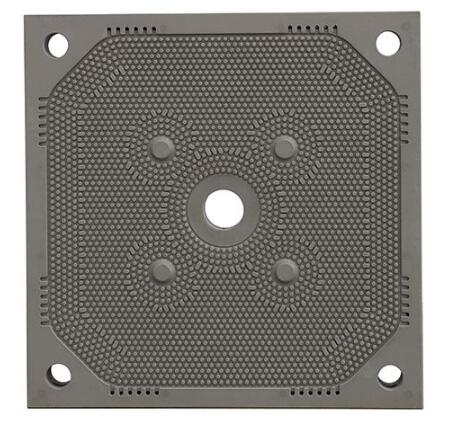

Chamber filter plates are one of the most widely used types in industrial filtration. These plates consist of two parts: a filtering surface and a chamber for collecting separated solids. When a slurry is pumped into the filter press, the chambers fill with the liquid, leaving solids behind on the filter cloth. As the process continues, the liquid is drained away, and the solids remain trapped within the chambers.
Chamber filter plates are ideal for applications where the filtration process requires a higher capacity for holding separated solids, such as in the mining, chemical, and food industries. The chambers allow for larger volumes of solids to be collected, which can improve efficiency and reduce the frequency of filter plate cleaning or replacement.
Membrane filter plates are similar to chamber plates but feature an additional membrane that can be inflated once the filtration process is complete. This inflatable membrane exerts pressure on the solids collected in the chamber, helping to expel more liquid and compress the filter cake. This design significantly improves the filtration capacity and recovery rate, especially in applications that require dry solids.
Membrane filter plates are commonly used in processes that require high efficiency and low moisture content in the filter cake. Industries such as pharmaceuticals, wastewater treatment, and specialty chemicals benefit from membrane plates because they allow for better filtration results and faster cycles.
Plate and frame filter plates are among the oldest types of filter plates used in industrial filtration. They consist of alternating layers of filter plates and frames. The frame holds the filter cloth, while the plates provide a surface for filtration. When the filter press is operated, liquid is forced through the filter cloths, separating solids from liquids.
Although plate and frame filter plates are less common today due to the advent of more advanced designs like membrane plates and chamber plates, they are still used in some applications, particularly for very fine filtration tasks. They are typically found in laboratories, small-scale operations, and industries that require very precise filtration, such as oil refining or some pharmaceutical processes.
Spiral filter plates are a newer development designed to handle challenging filtration tasks, especially those involving high viscosity liquids or slurries with a large amount of fine particles. The spiral design allows for an efficient flow of material through the plate, which can reduce the likelihood of clogging and improve the overall filtration rate.
Spiral filter plates are typically used in industries that deal with highly viscous liquids, such as the food and beverage, mining, and chemical industries. The spiral configuration is also highly effective in removing fine solids from liquids, making it ideal for high-precision filtration applications.
When selecting a filter plate, it’s important to consider several factors:
Filtration Requirements: Determine whether you need a filter that can handle large volumes of solids or if you require more precise filtration. For higher capacity, chamber filter plates are ideal, while membrane plates are better suited for applications requiring efficient solid-liquid separation.
Product Characteristics: If you are dealing with highly viscous slurries or fine particles, spiral filter plates may be the most effective choice. For standard applications, chamber or membrane filter plates will often meet the needs.
Operating Conditions: Consider the temperature, pressure, and chemical conditions in your filtration process. Some filter plates are designed for high-pressure environments, while others are better suited for lower-pressure, less demanding processes.
Maintenance and Cleaning: Different filter plates have different cleaning requirements. Membrane and chamber plates may require less frequent cleaning due to their higher capacity for collecting solids, while plate and frame plates might need more maintenance.
Choosing the right filter plate is crucial to optimizing your filtration process. The type of plate you select will depend on factors such as the material being filtered, filtration efficiency requirements, and operational conditions. Whether you need a chamber, membrane, plate and frame, or spiral filter plate, selecting the correct style can improve your system's efficiency, reduce downtime, and enhance the quality of your end product. If you need further guidance on which filter plate is best suited for your needs, don’t hesitate to contact us. As a trusted supplier, we can help you choose the right filter plate solution to improve your filtration processes and meet your operational goals.
